Getting Started with BEACN StudioUpdated a day ago

To download the BEACN App, click here.
Download the Installer and follow the on-screen prompts.

1. Plug one end of the USB-C cable into the back of BEACN Studio in USB-C Port 1.
2. Plug the other end of the USB-C cable into your computer. Use the provided USB-C to USB-A adapter if needed.
3. Plug your headphones into the back of BEACN Studio.
4. Wait for the light-up sequence on your BEACN Studio to confirm that it is ready to use with the BEACN App.

PROFILE WINDOW

The Profile Window is where users can Add, Remove, Save, and Duplicate their Profiles. Profiles are designed to help users be able to quickly and easily switch between various audio setups.

DEVICE COLUMN

The Device Column displays all connected devices and their various modules. Clicking on the device icon will expand/contract the device modules to save space. This is also where the Mixing Window lives, located at the very top.

EQUALIZER AND ENHANCEMENT SUITE

If and when creators need to adjust their microphone settings, most of the time it is done through the equalizer and enhancement suite. We have this anchored to the top of the window so it is always accessible.

SECONDARY PLUGINS

While no less important, secondary plugins are adjusted less often than the equalizer and therefore are placed in a tabbed view down below.

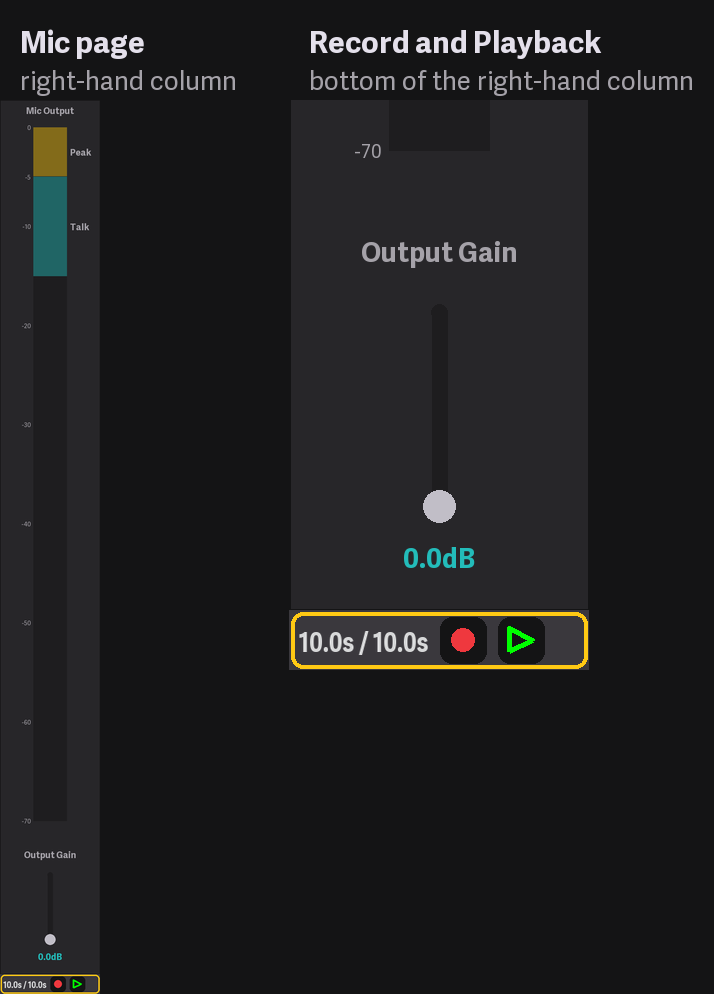

MIC OUTPUT AND OUTPUT GAIN

The Mic Output and Output Gain are the end of a user’s microphone chain. The Mic Output meter tells you exactly how loud you are coming in to your computer. The Output Gain gives users an additional volume boost if they are too quiet.

VOICE RECORDER

The Voice Recorder lets users record up to a 10 second clip that will be replayed through their microphone chain. Changes made to the user’s microphone chain are reflected in real time so a user doesn’t need to continue speaking to hear how their adjustments sound.
